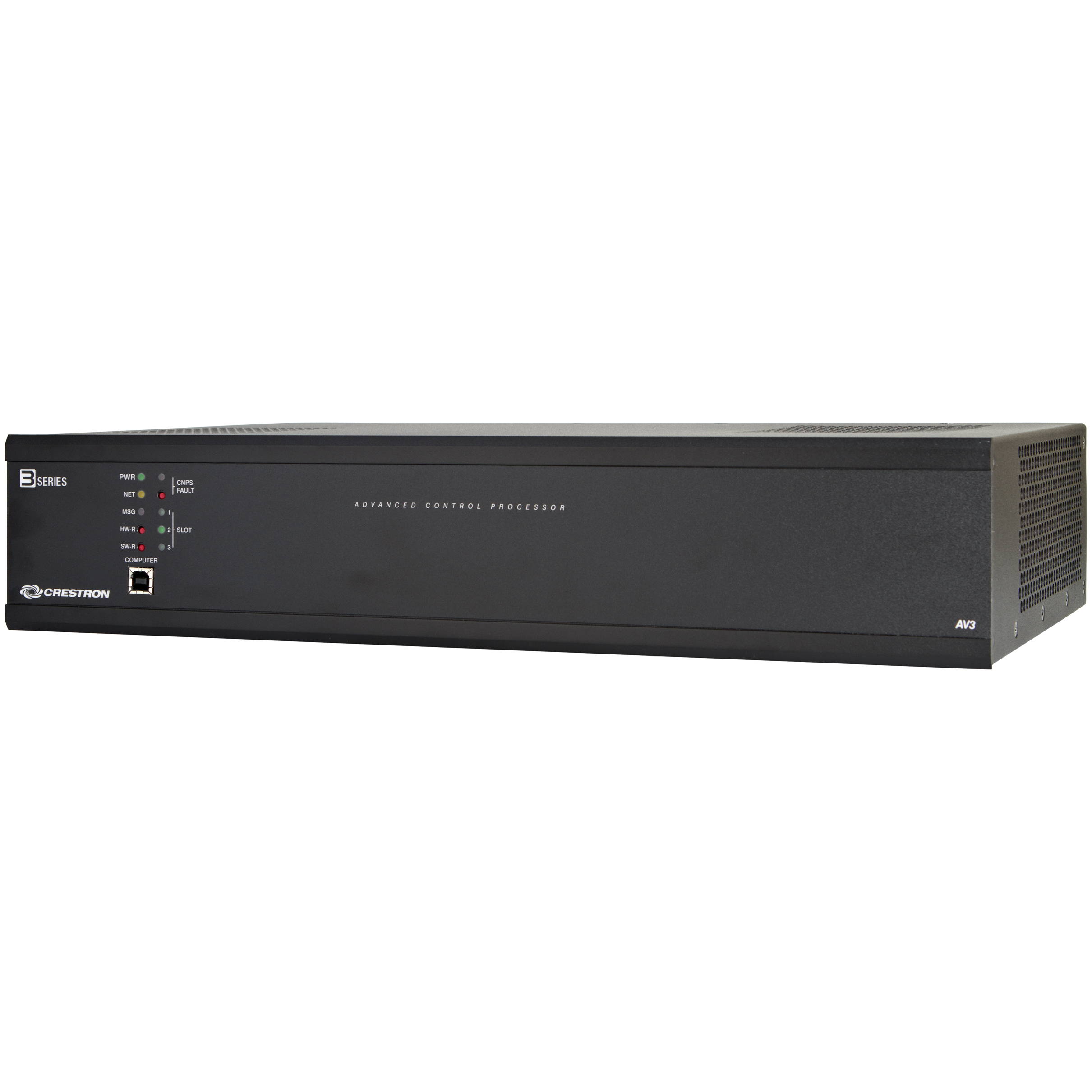

AV3 環控主機
機架安裝控制系統
一個機架安裝的3系列控制處理器，提供巨大的功率，擴展的內存，許多集成的控制端口和可選的控制卡擴展槽。提供一個獨立的控制子網，提供專用於快思聰設備的千兆乙太網LAN。
- 企業級控制系統
- 3系列控制引擎 - 比其他控制系統快得多，功能更強大。
- 獨家模塊化編程架構
- 板載1GB RAM和4GB閃存
- 可擴展存儲高達1TB
- 後面板存儲卡插槽
- 高速USB 2.0主機端口
- 行業標準乙太網和Cresnet®有線通信
產品詳細資訊
Product Description
Crestron®AV3是一種具有增強功能集的企業級控制系統，包括內置的控制卡擴展槽和專用的控制子網端口。採用3系列控制引擎，AV3構成了任何現代網絡家庭或商業建築的核心，管理和整合所有不同的技術在整個設施中，使生活更輕鬆，更環保，更高效，更愉快。
3系列控制系統
模塊化編程架構
堅固的乙太網和IP控制
專用控制子網
控制應用程序和XPanel
CrestronFusion®Cloud
SNMP支持
Cresnet®
板載控制端口
控制卡擴展插槽
BACnet™/ IP
1.功能特點
- 企業級控制系統
- 3系列控制引擎 - 比其他控制系統快得多，功能更強大。
- 獨家模塊化編程架構
- 板載1GB RAM和4GB閃存
- 可擴展存儲高達1TB
- 後面板存儲卡插槽
- 高速USB 2.0主機端口
- 行業標準乙太網和Cresnet®有線通信
- 控制子網 - 為Crestron®設備提供專用的本地網絡
- XPanel採用Smart Graphics™計算機和基於Web的控制
- iPhone®，iPad®和Android™控制應用程序支持
- 快思聰Fusion®雲企業管理服務支持
- SNMP遠程管理支持
- 兩個RS-232/422/485 COM端口，具有硬件和軟件握手功能。
- 四個RS-232 COM端口，僅具有軟件握手功能
- 八個IR /串行，八個繼電器和八個Versiport I / O端口。
- 三個內置3系列控制卡擴展槽
- 可編程事件調度與天文時鐘
- 本地BACnet™/ IP支持
- IEC 61000-4-5在COM，Versiport和網絡連接上安裝Class 4浪湧抗擾度。
- 通過Crestron Toolbox™軟件或Web瀏覽器進行安裝程序設置
- C＃，基於符號和拖放編程環境。
- 完整的Unicode（多語言）支持
- 提高網絡吞吐量和安全性
- 通過完全的用戶/組管理或Active Directory集成來安全訪問
- 使用802.1X身份驗證的硬件級安全性
- TLS，SSL，SSH和SFTP網絡安全協議
- FIPS 140-2兼容加密
- IIS v.6.0 Web服務器
- IPv6準備好了
- 前面板USB電腦控制台端口
- 2空間可機架安裝
產品詳細規格
Additional Information
| 產品型號 |
AV3 |
|---|---|
| Control Engine | |
| Crestron 3-Series; real-time, preemptive multi-threaded/multitasking kernel; Transaction-Safe Extended FAT file system; supports up to 10 simultaneously running programs | |
| Memory | |
| SDRAM | 1 GB |
| Flash | 4 GB |
| Memory Card | Supports SD and SDHC cards up to 32 GB |
| External Storage | Supports USB mass storage devices up to 1 TB |
| Communications | |
| Ethernet | 10/100/1000 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, industry-standard TCP/IP stack, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), FIPS 140-2 compliant encryption, IEEE 802.1X, SNMP, BACnet/IP [2], IPv4 or IPv6, Active Directory authentication, IIS v.6.0 Web Server, SMTP e-mail client |
| Control Subnet | 10/100/1000 Mbps Ethernet, auto-switching, auto-negotiating, auto-discovery, full/half duplex, DHCP server, DNS Server, port forwarding, Isolation Mode |
| Cresnet | Cresnet master mode |
| USB | Supports USB mass storage class devices via rear panel USB 2.0 host port, supports computer console via front panel USB 2.0 device port |
| RS-232/422/485 | For 2-way device control and monitoring, all ports support RS-232 up to 115.2k baud with software handshaking, two ports also support hardware handshaking, RS-422, and RS-485 |
| IR/Serial | Supports 1-way device control via infrared up to 1.2 MHz or serial TTL/RS-232 (0-5 Volts) up to 115.2k baud |

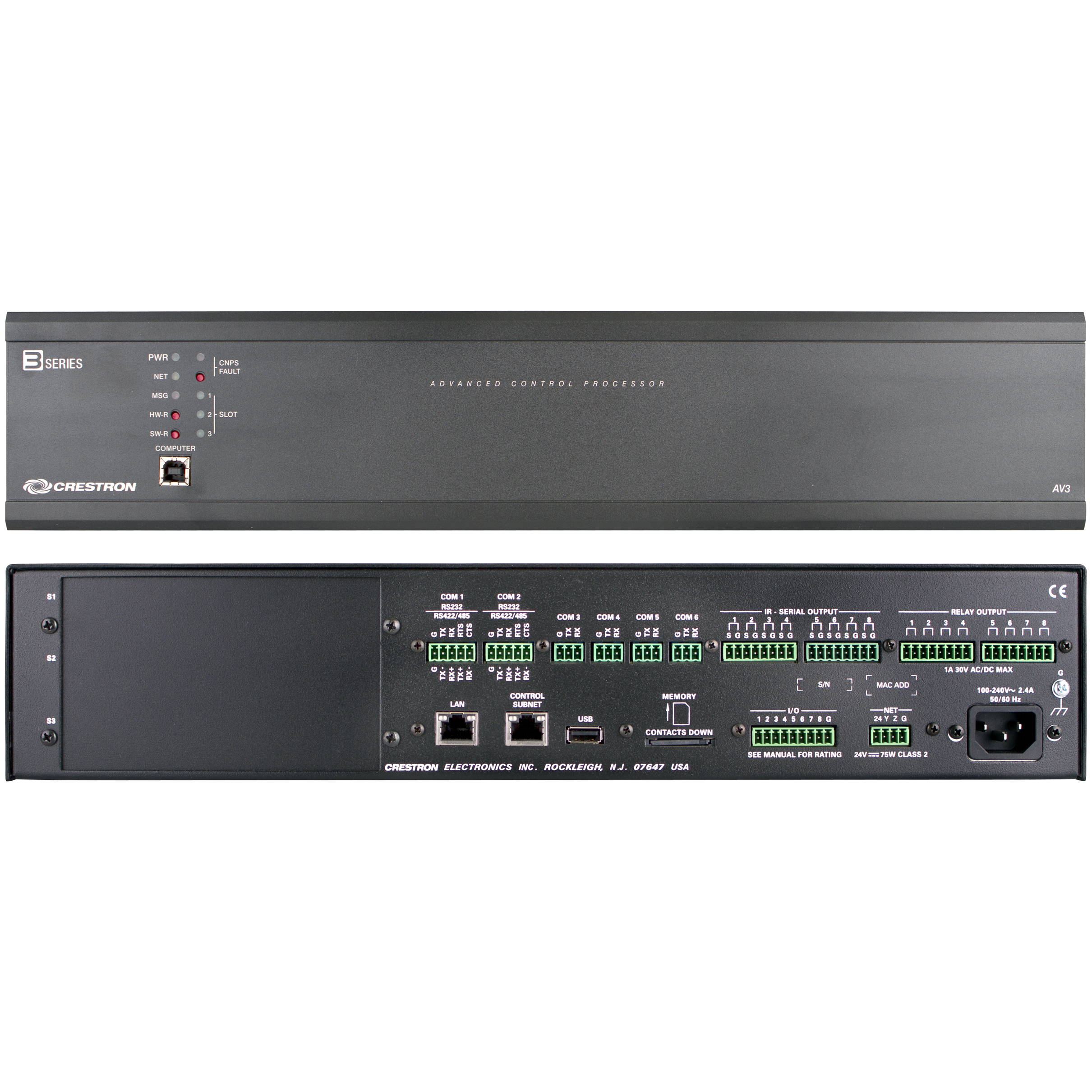

| Connectors & Card Slots | |
| S1 – S3 | (3) 3-Series control card expansion slots (optional)[3] |
| COM 1 – 2 | (2) 5-pin 3.5 mm detachable terminal blocks; Bidirectional RS-232/422/485 ports [4]; Up to 115.2k baud; hardware and software handshaking support |
| COM 3 – 6 | (4) 3-pin 3.5 mm detachable terminal blocks; Bidirectional RS-232 ports [4]; Up to 115.2k baud; software handshaking support |
| IR - SERIAL OUTPUT 1 – 8 | (2) 8-pin 3.5 mm detachable terminal block; Comprises (8) IR/Serial output ports; IR output up to 1.2 MHz; 1-way serial TTL/RS-232 (0-5 Volts) up to 115.2k baud |
| RELAY OUTPUT 1 – 8 | (2) 8-pin 3.5 mm detachable terminal blocks; Comprises (8) normally open, isolated relays; Rated 1 Amp, 30 Volts AC/DC; MOV arc suppression across contacts |
| LAN | (1) 8-pin RJ45 jack; 10Base-T/100Base-TX/1000Base-T Ethernet port [4]; Connects to the customer's LAN |
| CONTROL SUBNET | (1) 8-pin RJ45 jack; 10Base-T/100Base-TX/1000Base-T Ethernet port [4]; Provides a dedicated local network for Crestron devices |
| USB | (1) USB Type A female; USB 2.0 port for storage devices |
| MEMORY | (1) SD memory card slot; Accepts one SD or SDHC card up to 32 GB for memory expansion |
| I/O 1 – 8 | (1) 9-pin 3.5 mm detachable terminal block; Comprises (8) "Versiport" digital input/output or analog input ports (referenced to GND) [4]; Digital Input: Rated for 0-24 Volts DC, input impedance 20k Ohms, logic threshold >3.125V low/0 and <1.875V high/1; Digital Output: 250 mA sink from maximum 24 Volts DC, catch diodes for use with "real world" loads; Analog Input: Rated for 0-10 Volts DC, protected to 24 Volts DC maximum, input impedance 21k Ohms with pull-up resistor disabled; Programmable 5 Volts, 2k Ohms pull-up resistor per pin |
| NET | (1) 4-pin 3.5 mm detachable terminal block; Cresnet master port, outputs power to Cresnet devices [4]; See "Power" section for additional specifications |
| 100-240V~2.4A 50/60Hz | (1) IEC 60320 C14 main power inlet; Mates with removable power cord, included |
| G | (1) 6-32 screw; Chassis ground lug |
| COMPUTER (front) | (1) USB Type B female; USB 2.0 computer console port (6 ft cable included); For setup only |
| Controls & Indicators | |
| PWR | (1) Green LED, indicates operating power supplied from AC line |
| NET | (1) Amber LED, indicates communication with the Cresnet system |
| MSG | (1) Red LED, indicates control system has generated an error message |
| HW-R | (1) Recessed pushbutton for hardware reset |
| SW-R | (1) Recessed pushbutton for software reset |
| CNPS FAULT | (1) Red LED and (1) pushbutton, LED indicates an excessive Cresnet load detected at the NET port, pushbutton resets the fault indication |
| SLOT 1 – 3 | (3) Green LEDs, indicate control cards are inserted in the corresponding slots [3] |
| LAN (rear) | (2) Bi-color green/amber LEDs, left LED indicates Ethernet link status and connection speed, right LED indicates Ethernet activity |
| CONTROL SUBNET (rear) | (2) Bi-color green/amber LEDs, left LED indicates Ethernet link status and connection speed, right LED indicates Ethernet activity |
| Power | |
| Main Power | 2.4 Amps @ 100-240 Volts AC, 50/60 Hz |
| Available Cresnet Power | 75 Watts (3.125 Amps @ 24 Volts DC) |
| Environmental | |
| Temperature | 41° to 113° F (5° to 45° C) |
| Humidity | 10% to 90% RH (non-condensing) |
| Heat Dissipation | 45 BTU/hr with no Cresnet devices, no control cards; 71 BTU/hr with full Cresnet load, no control cards; See individual control card spec sheets for additional specifications |
| Enclosure | |
| Chassis | Metal, black finish, vented top and sides |
| Faceplate | Extruded metal, black finish, polycarbonate label overlay |
| Mounting | Freestanding or 2 RU 19-inch rack-mountable (adhesive feet and rack ears included) |
| Dimensions | |
| Height | 3.47 in (89 mm) without feet |
| Width | 17.28 in (439 mm); 19.00 in (483 mm) with rack ears |
| Depth | 10.06 in (256 mm) |
| Weight | |
| 4.0 lb (1.9 kg) | |
