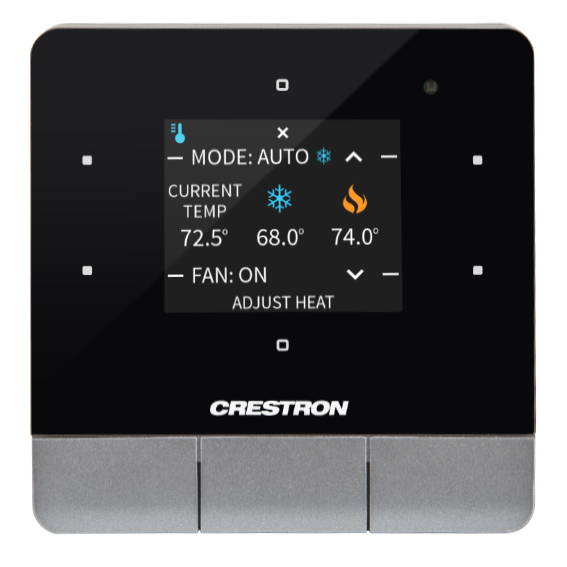

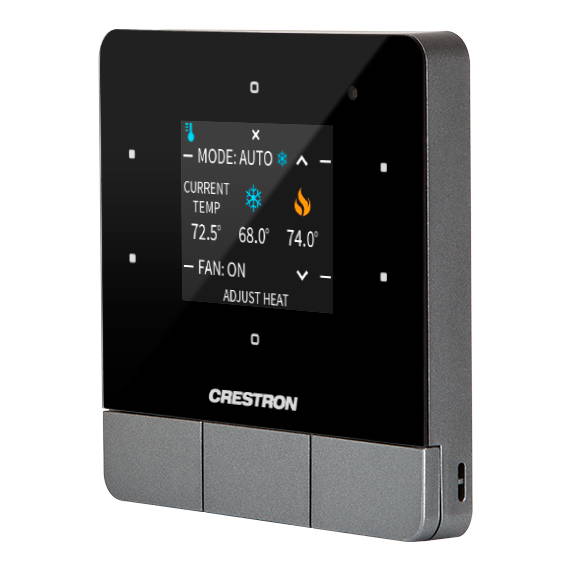

Crestron®C2N-LCDB3多用途LCD鍵盤將照明,陰影,氣候和媒體控制結合在一個優雅,緊湊的鍵盤上。使用三個方便的按鈕之一調用預編程的場景,包括環境照明,開放或關閉色調和流式音樂。觸摸鍵盤屏幕上的電容式硬鍵,滾動四個主屏幕。在照明頁面上對特定房間或燈具進行照明調整。使用陰影頁面來升高,降低,打開或關閉房間中的快思聰陰影解決方案。查看氣候頁面上的當前室溫,並觸摸屏幕的硬鍵,以提高或降低房間的溫度,打開和關閉HVAC系統的風扇,並在加熱和冷卻模式之間切換。媒體頁面顯示當前正在播放的音樂曲目。從這裡,用戶可以在媒體源之間切換,控製播放列表,並調整音量。多用途LCD鍵盤可讓用戶在家中控制Crestron技術,所有這些都在單一,優雅,易於安裝的鍵盤中!
1.功能特點
產品型號 |
C2N-LCDB3 |
---|---|
LCD Display | |
Display Type | 16-bit TFT active matrix color LCD |
Size | 2.00 in (50 mm) diagonal |
Resolution | 220 x 176 pixels |
Illumination | White LED backlit |
Displays controls for lighting, climate, shades, and media on each of four main screen pages | |
Controls & Indicators | |
Hard Keys | |
(6) Individually-backlit projected capacitive pushbuttons, programmable, pre-labeled with glyphs | |
Buttons | |
Keypad Buttons | (3) Single-action pushbuttons |
Button Events | Programmable for Normal, Tap, Double-Tap, and Press and Hold |
Button Caps | (3) Gray, textured plastic button caps; All button caps are blank; Custom-engraved button c |
Backlight | (3) White LEDs, one to backlight each engraved button; Software-adjustable intensity, auto-dimmable |
Temperature Sensor | |
Measurement Range | -40º to 100º F (-40º to 38º C) |
Temperature Tolerance | 0.5º F (0.3º C) |
Connections | |
USB | (1) Micro Type B female; USB computer console port, for installer use only |
NET | (1) 4-pin 3.5 mm detachable terminal block; Cresnet® slave port, connects to Cresnet control network |
R, G | (1) 2-pin 3.5 mm detachable terminal block; CHV-RTS remote temperature sensor input[2] |
Power Requirements | |
Current Consumption | 60 mA |
Cresnet Power Usage | 1.5 Watts |
Environmental | |
Temperature | 32° to 104° F (0° to 40° C) |
Humidity | 10% to 90% RH (non-condensing) |
Heat Dissipation | 1.5 Watts |
Construction | |
Housing | Plastic |
Mounting | Mounts to a 1-gang UK (BS 4662) electrical box |
Dimensions | |
Height | 3.42 in (87 mm) |
Width | 3.42 in (87 mm) |
Depth | 0.67 in (17 mm) |
Weight | |
3.2 oz (91 g) | |
Notes: | |
|
