1.功能特點
產品型號 | PLD4.3 | PLD4.5 | |||
---|---|---|---|---|---|
SPECIFICATIONS | |||||
Peak | Continuous | Peak | Continuous | ||
4 Independent Channels A, B, C, D |
8Ω | 900 W | 625 W | 1200 W | 1150 W |
4Ω | 1400 W | 625 W | 2000 W | 1250 W | |
2Ω | 1200 W | 625 W | 1600 W | 625 W | |
2 Channel BTL Bridged A+B or C+D Doubles Voltage |
8Ω | 2400 W | 1250 W | 4000 W | 2250 W |
4Ω | NR* | NR* | NR* | NR* | |
2Ω | NR* | NR* | NR* | NR* | |
2 Channel Parallel AB or CD Doubles Current |
8Ω | 1300 W | 1150 W | 1250 W | 1150 W |
4Ω | 2000 W | 1250 W | 2400 W | 2250 W | |
2Ω | 2500 W | 1250 W | 4000 W | 2100 W | |
1 Channel 3CH Parallel ABC Triples Current |
8Ω | 1400 W | 1150 W | 1400 W | 1150 W |
4Ω | 2400 W | 2000 W | 2500 W | 2400 W | |
2Ω | 3500 W | 2500 W | 4500 W | 4100 W | |
1 Channel Bridged/Parallel AB+CD Doubles Current and Voltage |
8Ω | 3500 W | 2500 W | 4500 W | 4200 W |
4Ω | 5000 W | 2500 W | 7500 W | 4200 W | |
2Ω | NR* | NR* | NR* | NR* | |
1 Channel 4CH Parallel ABCD Quadruples Current |
8Ω | 1400 W | 1150 W | 1600 W | 1150 W |
4Ω | 3000 W | 2500 W | 3000 W | 2300 W | |
2Ω | 5000 W | 2500 W | 5300 W | 4200 W | |
Controls, Indicators and Connections | |||||

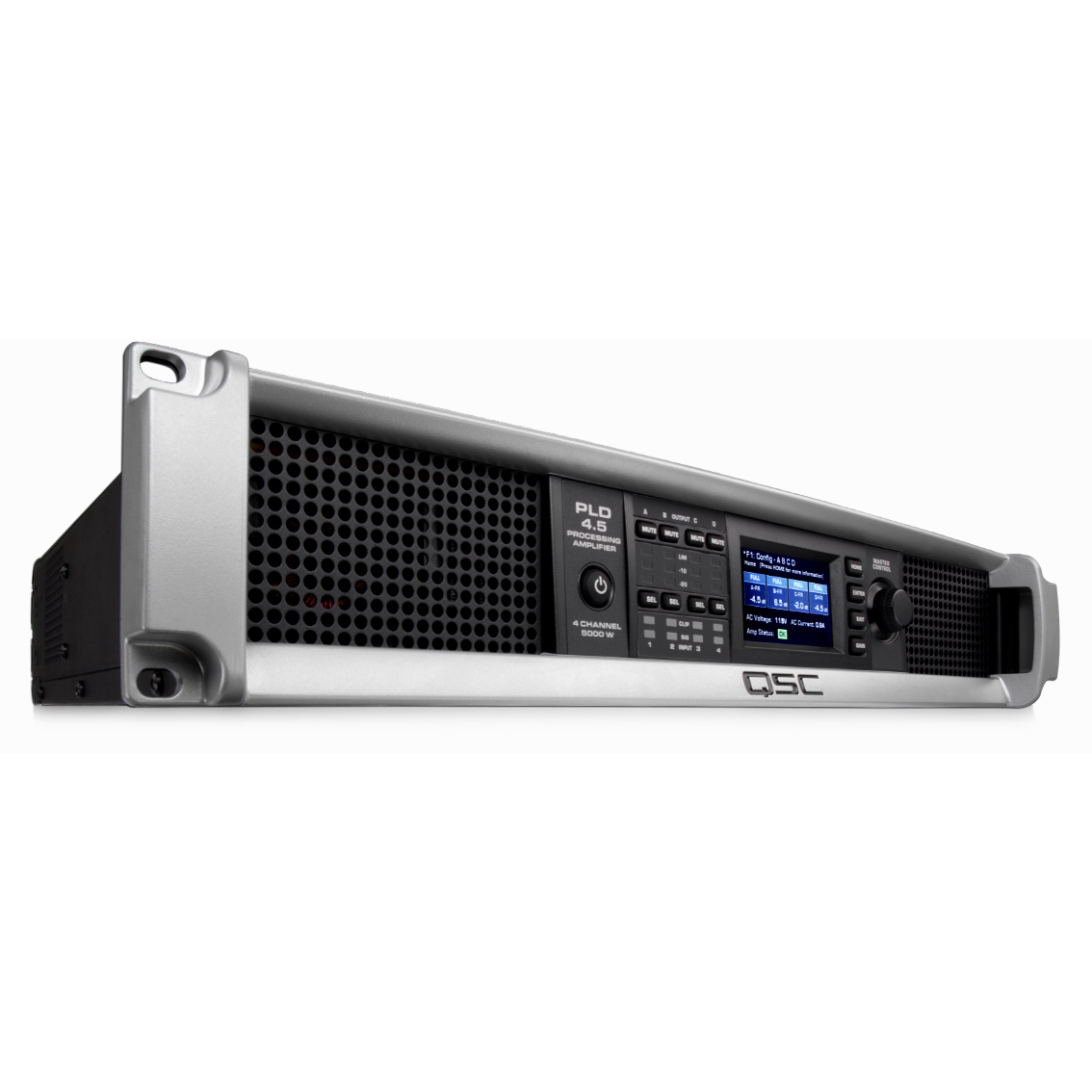

Controls and indicators (front) | Power • Channel MUTE Buttons • Channel SELECT buttons • Channel input signal and CLIP LED indicators • Channel output and LIMIT LED meters • HOME, ENTER, EXIT, GAIN navigation buttons • Control knob | ||||

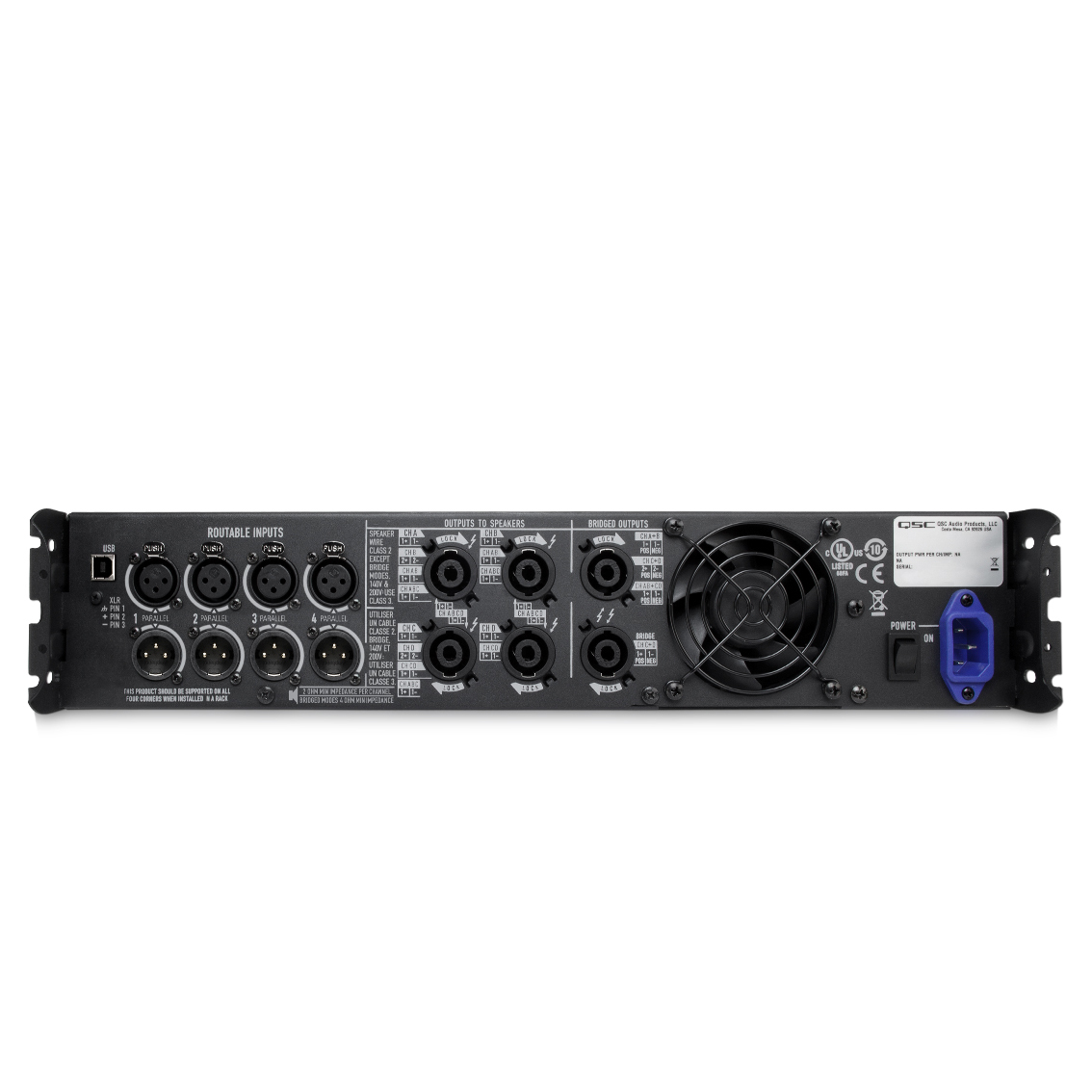

Controls and indicators (rear) | AC Power Disconnect | ||||
Input connectors | Female XLR | ||||
Output connectors | NL4 | ||||
Weights and Dimensions | |||||
Dimensions (HWD) inches | 3.5 x 19 x 16 | 3.5 x 19 x 16 | |||
Dimensions (HWD) mm | 89 × 482 × 406 | 89 × 482 × 406 | |||
Weight, Net / Shipping | 21.0 lb (9.5 kg) / 25 lb (11.3 kg) | 22.0 lb (10.0 kg) / 26 lb (11.8 kg) | |||
Agency approvals | UL, CE, RoHS/WEEE compliant, FCC Class A (conducted and radiated emissions) | ||||
Carton contents | Locking IEC cable, Quick Start Guide, USB cable |
