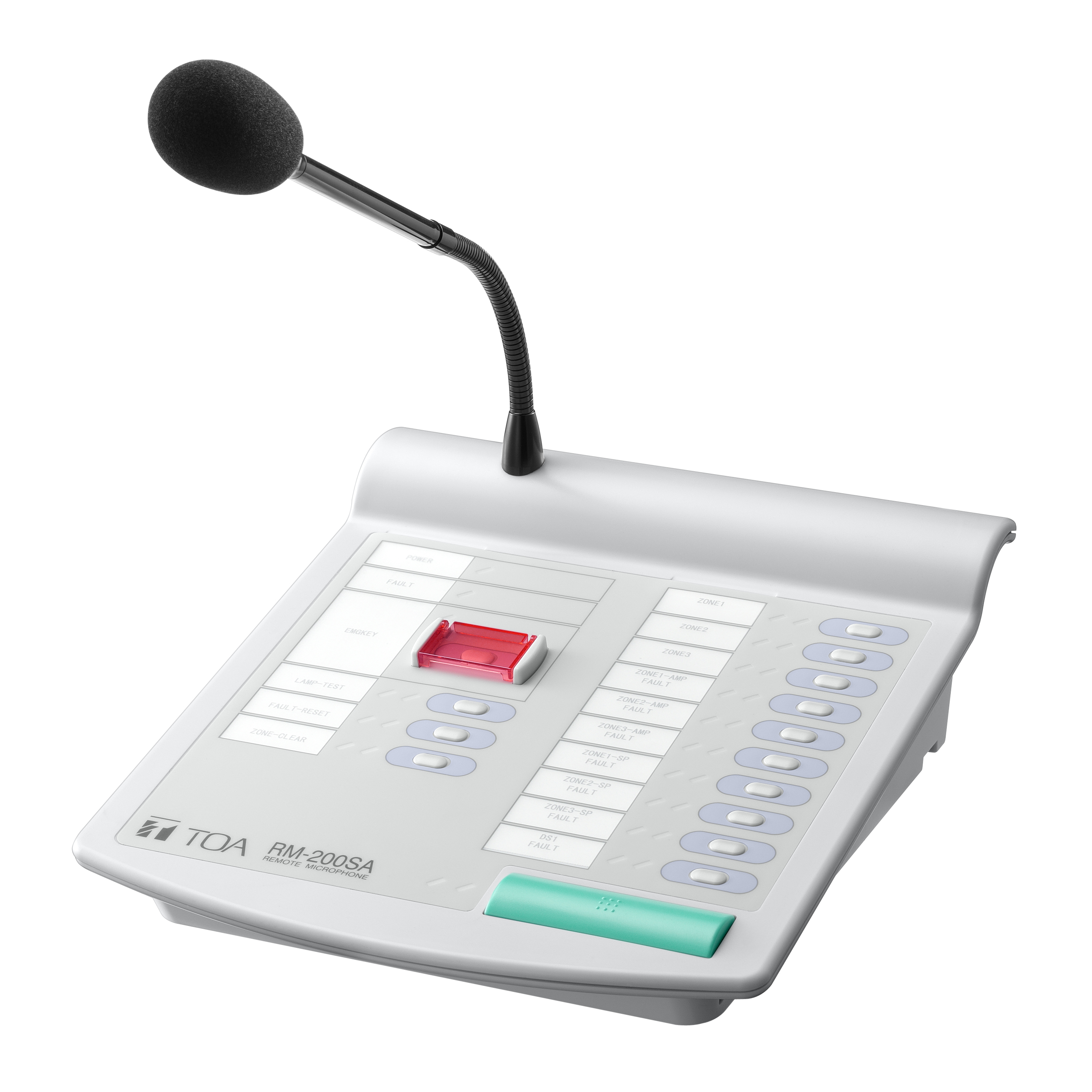

RM-200SA 遙控麥克風
- RM-200SA是為Matrix系統設計的遠程麥克風。
- 它配有13個功能開關，可用於選擇單個區域或區域組覆蓋開關和相應的指示器。
- 可選的RM-210遙控麥克風擴展允許開關和指示以10個單位擴展。
產品詳細資訊
Product Description
1.功能特點
- RM-200SA是為Matrix系統設計的遠程麥克風。
- 它配有13個功能開關，可用於選擇單個區域或區域組覆蓋開關和相應的指示器。
- 可選的RM-210遙控麥克風擴展允許開關和指示以10個單位擴展。
產品詳細規格
Additional Information
| 產品型號 | RM-200SA |
|---|---|
| Specification | |
| Power Source | 24 V DC (operating range: 15 - 40 V DC, supplied from the audio input unit) or DC input power supple connector (when the optional AD-246 power supply unit used). Usable DC power supply plug: 5.5 mm (0.22") outer diameter, 2.1 mm (0.08") inner diameter, 9.5 mm (0.37") long, and non-polarity type. |
| Current Consumption | 240 mA or less |
| Audio Output | 0 dB*, 600 Ω, balanced |
| External MicrophoneInput | -40 dB*, 2.2 kΩ, unbalanced, mini jack, for electret condenser microphone (phantom power supply: 3 V DC) |
| Distortion | 1 % or less |
| Frequency Response | 100 Hz - 20 kHz |
| Signal to Noise Ratio | 60 dB or more |
| Microphone | Unidirectional electret condenser microphone with AGC (ON/OFF selectable) |
| Chime | Built inside (PCM sound source), monitoring possible using built-in speaker |
| Level Control | Microphone sensitivity control, Monitor speaker volume control, Chime (adjustable using the software) |
| Connection Cable | Main line: Shielded CPEV cable (1 pair of audio wire + 1 pair of data wire + 1 pair of monitor/control wire + 1 pair of supply wire) or Shielded Category 5 twisted pair cable (CAT5-STP) Branch line: Shielded Category 5 twisted pair cable (CAT5-STP), RJ45 connector |
| Maximum CableDistance | 800 m (874.89 yd) |
| No. of ConnectableExpansion | Max. 4 units |
| Monitor Speaker | Built inside |
| Operation | Function switch, Covered switch, Broadcast switch |
| Indicator | Power indicator, Failure indicator, Function switch indicator, Covered switch indicator, Broadcast switch indicator |
| Operating Temperature | 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F) |
| Operating Humidity | 35 % to 80 % RH (no condensation) |
| Finish | ABS resin, blueish gray |
| Dimensions | 190 (W) × 76.5 (H) × 215 (D) mm (7.48" × 3.01" × 8.46") (excluding microphone) |
| Weight | 880 g (1.94 lb) |
| Option | Remote microphone extension: RM-210 Terminal unit: RM-200RJ Wall mounting bracket: WB-RM200 Electret condenser microphone: WH-4000A, YP-M101, YP-M301 etc. |
