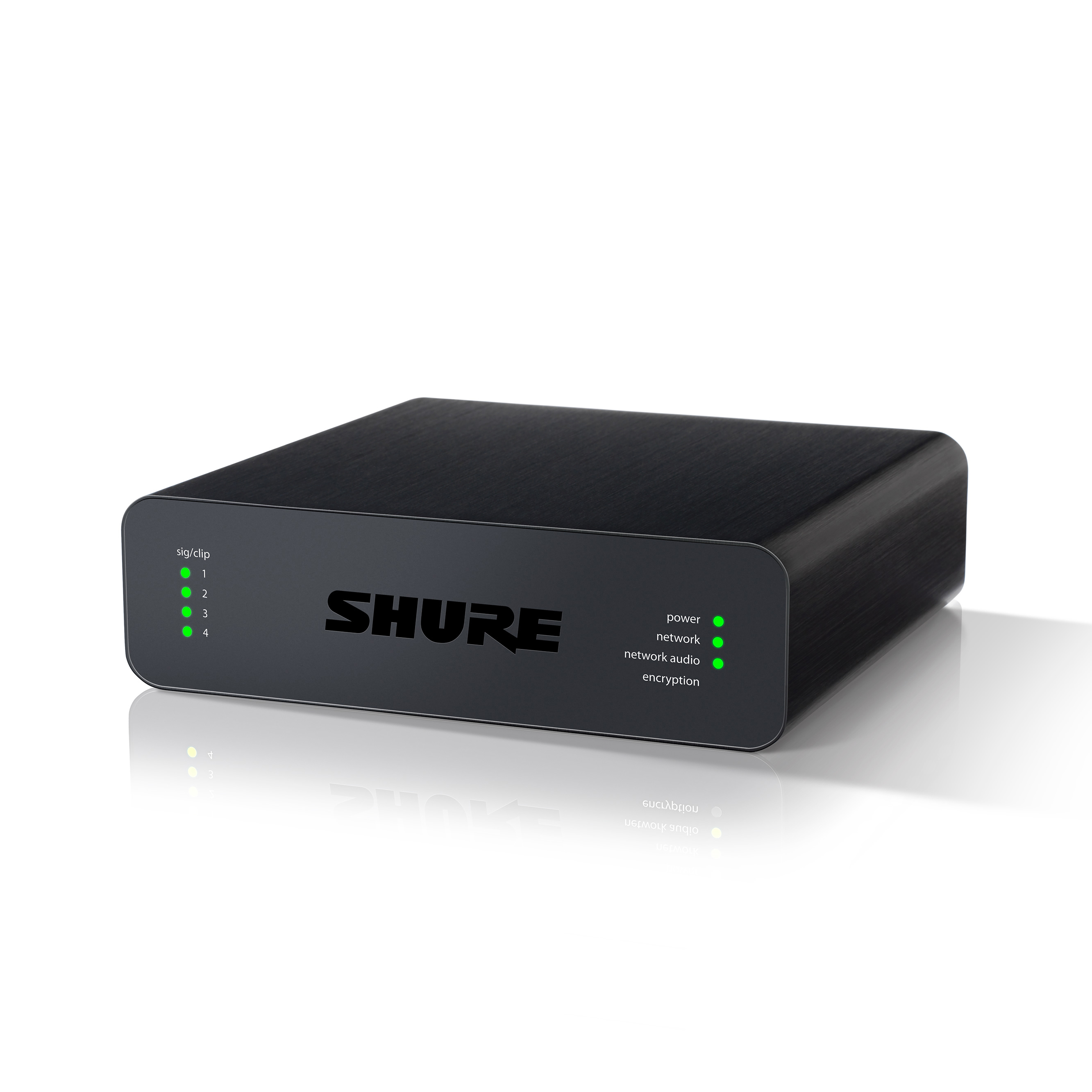

ANI4IN 網路傳輸器
將多達四條線/麥克風模擬信號轉換到Dante網絡，便於音頻路由和基於瀏覽器的控制。
- 單個以太網端口攜帶Dante音頻，電源（PoE - 0級）
- 內置每通道PEQ，音頻求和，10個預設
- 基於瀏覽器的軟件控制所有設備參數
- 提供塊連接器（音頻+邏輯）和標準XLR變體
產品詳細資訊
Product Description
將多達四條線/麥克風模擬信號轉換到Dante網絡，方便音頻路由和基於瀏覽器的控制。
1.功能特點
- 單個以太網端口攜帶Dante音頻，電源（PoE - 0級）
- LED指示設備狀態和音頻信號
- 用於第三方預置控制器的控製字符串，包括Crestron®和AMX®
- 每個通道上的4頻段C / S PEQ
- 提供通道求和以組合輸入信號並通過單個Dante™通道發送
- 基於瀏覽器的軟件控制所有設備參數，每個輸入通道：
- 前置增益
- 靜音控制
- 數位增益
- 極性控制
- 幽靈力量
- 1/3機架單位
- 機箱接地螺釘（僅限BLOCK版本）為多個輸入提供通用機箱接地

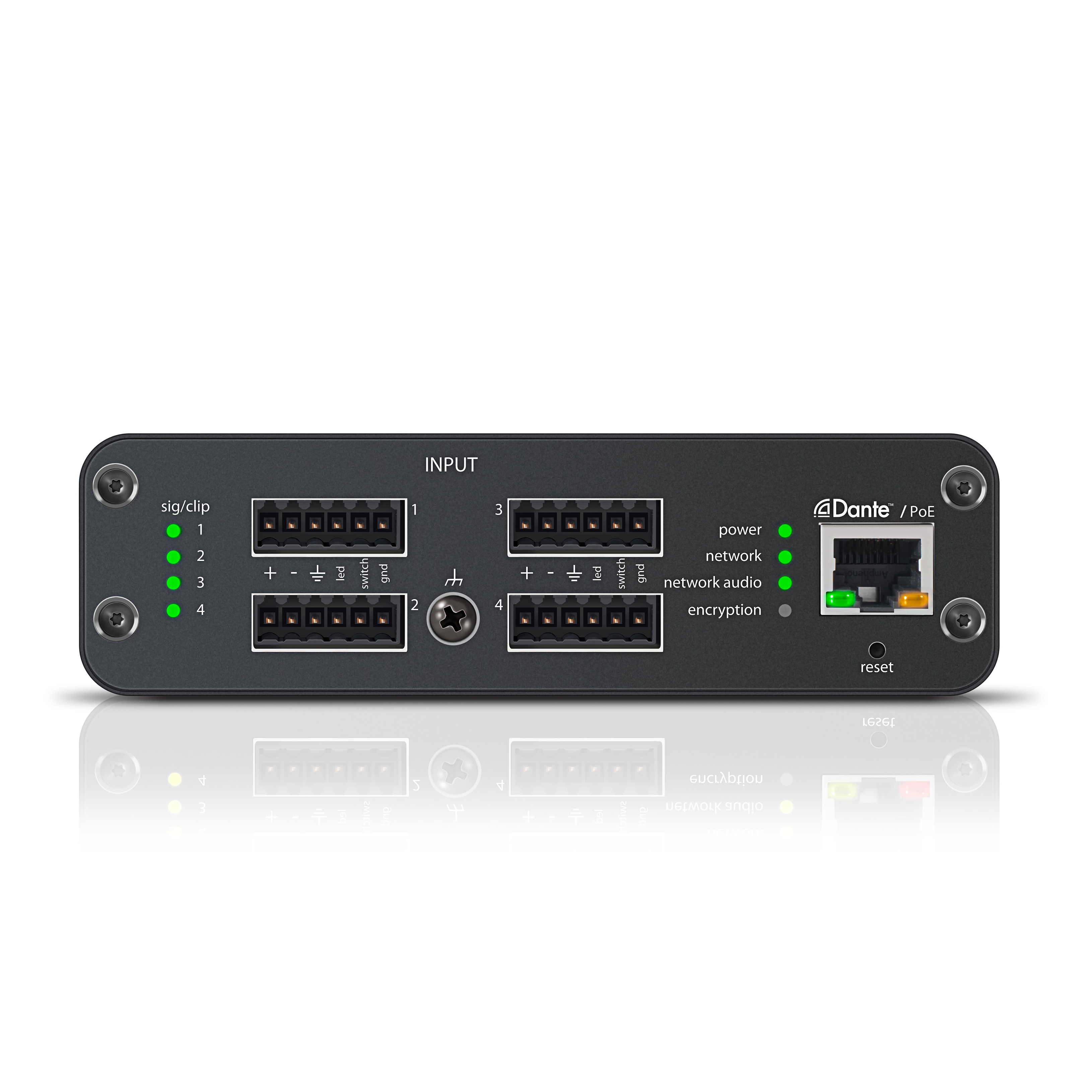

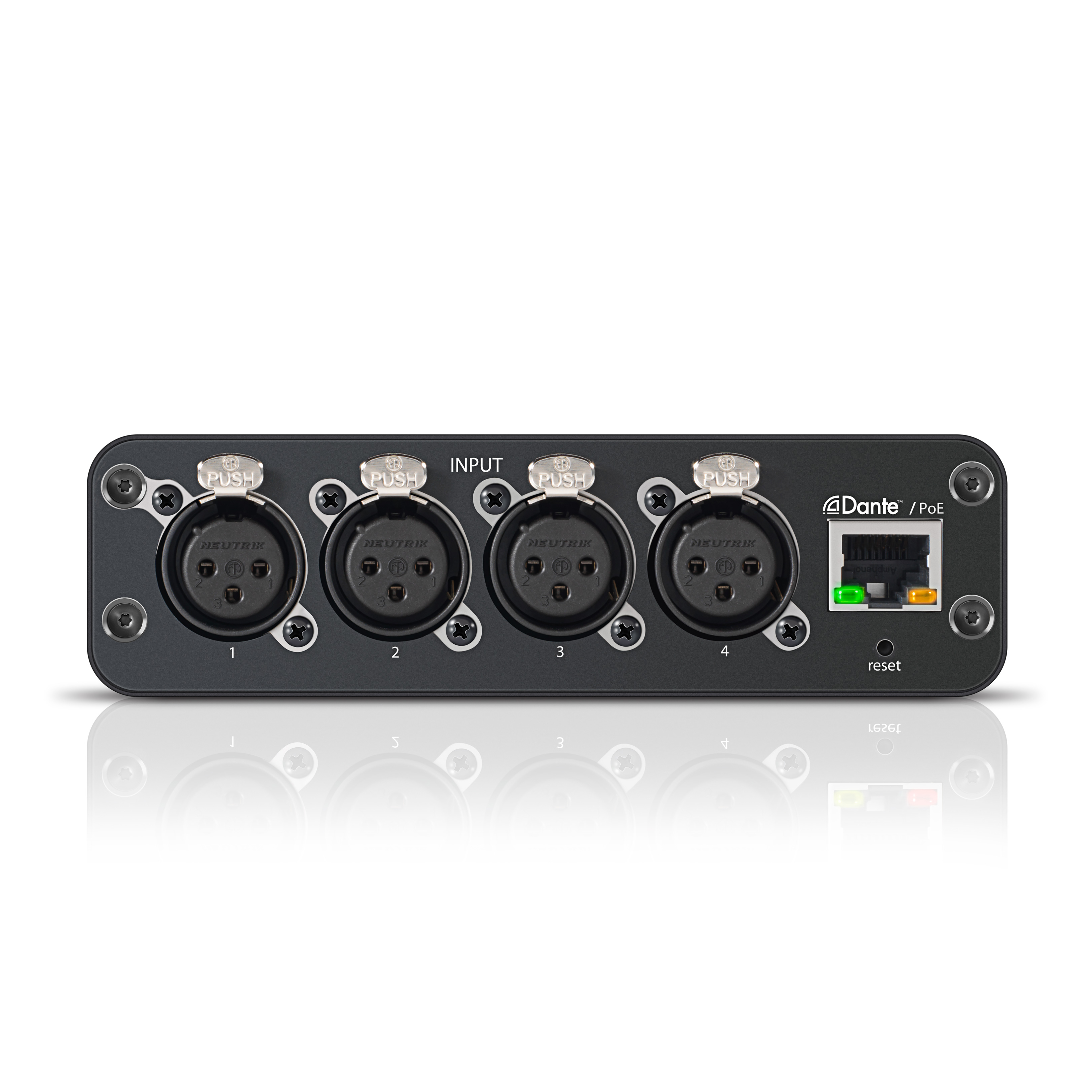

- 提供塊連接器（音頻+邏輯）和標準XLR變體
影片:
產品詳細規格
Additional Information
| 產品型號 | ANI4IN | ||||||
|---|---|---|---|---|---|---|---|
| Specifications | |||||||
| Beam Width |
|
||||||
| Phantom Power Selectable per channel |
+48 V | ||||||
| Logic Connections (Block connectors only) Sent as Ethernet command strings |
LED, Switch | ||||||
| Polarity | Non-inverting, any input to any output | ||||||
| Output | (1) RJ45 | ||||||
| Power Requirements | Power over Ethernet (PoE), Class 0 | ||||||
| Power Consumption | 10W, maximum | ||||||
| Weight | 672 g (1.5 lbs) | ||||||
| Product Dimensions (H x W x D) | 4 x 14 x 12.8 cm (1.6 x 5.5 x 5.0 in.) | ||||||
| Control Application | HTML5 Browser-based | ||||||
| Operating Temperature Range | −6.7°C (20°F) to 40°C (104°F) | ||||||
| Storage Temperature Range | −29°C (-20°F) to 74°C (165°F) | ||||||
| Networking | |||||||
| Cable Requirements | Cat 5e or higher (shielded cable recommended) | ||||||
| Audio | |||||||
| Frequency Response | 20 to 20,000 Hz | ||||||
| Dante Digital Output |
|
||||||
| Latency (Does not include Dante latency) | 0.35 ms | ||||||
| Analog Gain Range (Adjustable in 3 dB steps) | 51 dB | ||||||
| Dynamic Range (Analog-to-Dante) 20 Hz to 20 kHz, A-weighted, typical |
113 dB | ||||||
| Equivalent Input Noise | 20 Hz to 20 kHz, A-weighted, input terminated with 150Ω
|
||||||
| Total Harmonic Distortion (@ 1 kHz, 0 dBV Input, 0 dB analog gain) | <0.05% | ||||||
| Common Mode Rejection Ratio 150Ω balanced source @ 1 kHz |
>70 dB | ||||||
| Impedance | 5 kΩ | ||||||
| Input Configuration | Active Balanced | ||||||
| Input Clipping Level |
|
||||||
| Built-in Digital Signal Processing |
|
||||||
