產品詳細資訊
Product Description
將Dante™數字音頻信號轉換為四個離散線路/麥克風模擬信號。
1.功能特點
- 單個以太網端口攜帶Dante音頻，電源（PoE - 0級）
- LED指示設備狀態和音頻信號
- 用於第三方預置控制器的控製字符串，包括Crestron®和AMX®
- 每個通道上的4頻段C / S PEQ
- 提供通道求和以組合來自網絡的Dante™信號並通過單個模擬輸出發送
- 基於瀏覽器的軟件控制所有設備參數，每個輸出通道：
- 靜音控制
- 數位增益
- 極性控制
- 1/3機架單位
- 機箱接地螺釘（僅限BLOCK版本）為多個輸入提供通用機箱接地
- 提供塊連接器和標準XLR變體
影片:
產品詳細規格
Additional Information
| 產品型號 |
ANI4OUT |
| Specifications |
| Input |
(1) RJ45 |
| Outputs |

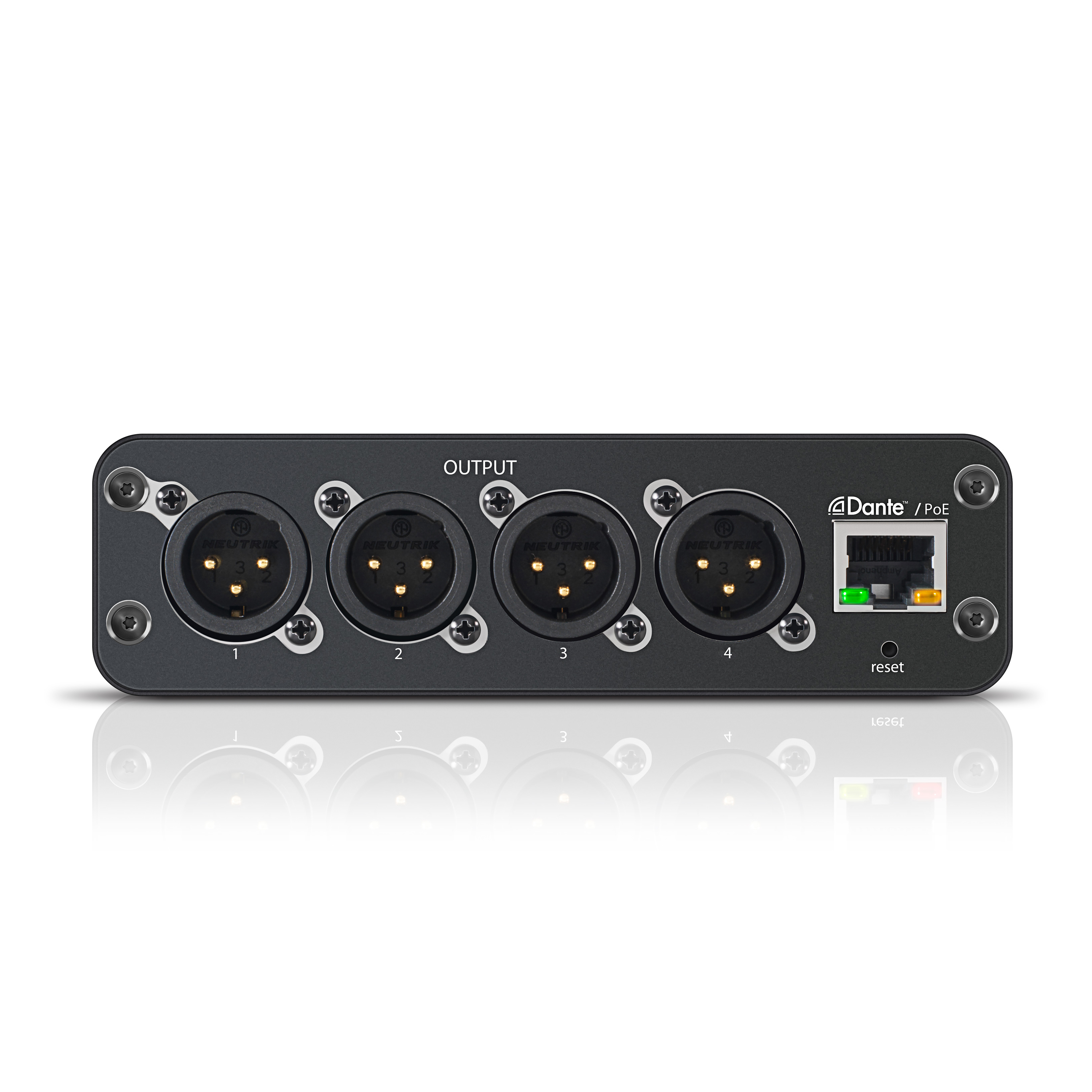

| ANI4OUT-XLR |
(4) XLR connector |

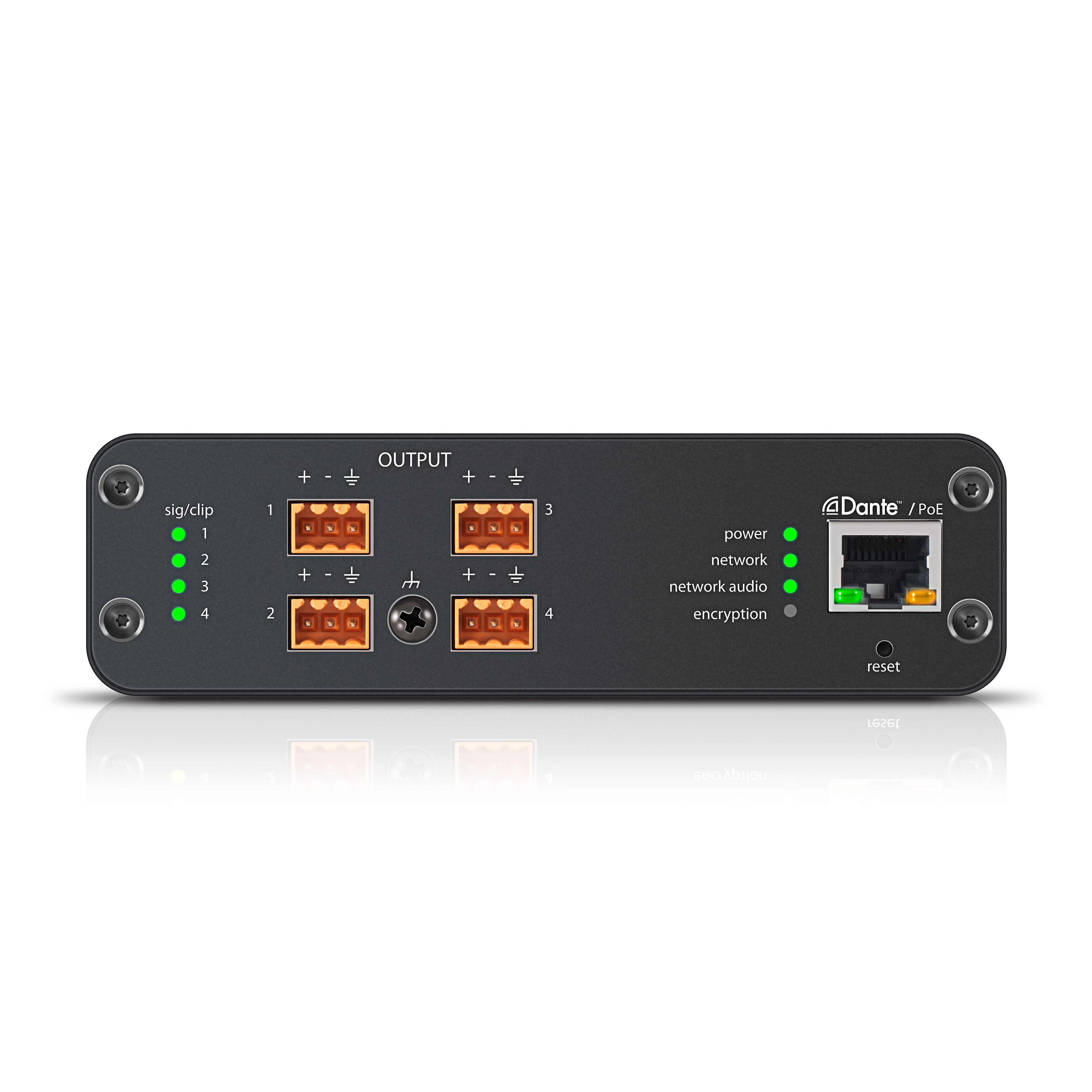

| ANI4OUT-BLOCK |
(4) 3-pin block connector
|
|
|
| Configuration |
Impedance Balanced |
| Polarity |
Non-inverting, any input to any output |
| Power Requirements |
Power over Ethernet (PoE), Class 0 |
| Power Consumption |
10W, maximum |
| Weight |
663 g (1.5 lbs) |
| Dimensions (H x W x D) |
4 x 14 x 12.8 cm (1.6 x 5.5 x 5.0 in.) |
| Control Application |
HTML5 Browser-based |
| Operating Temperature Range |
−6.7°C (20°F) to 40°C (104°F) |
| Storage Temperature Range |
−29°C (-20°F) to 74°C (165°F) |
| Networking |
| Cable Requirements |
Cat 5e or higher (shielded cable recommended) |
| Audio |
| Frequency Response |
20 to 20,000 Hz |
| Input (Dante Digital Audio) |
| Channel Count |
4 |
| Sampling Rate |
48 kHz |
| Bit Depth |
24 |
|
| Latency (Does not include Dante latency) |
0.71 ms |
Dynamic Range (Analog-to-Dante)
20 Hz to 20 kHz, A-weighted, typical |
117 dB |
| Total Harmonic Distortion (@ 1 kHz, 0 dBV Input, 0 dB analog gain) |
<0.05% |
| Output Clipping Level |
| Line |
+20 dBV |
| Aux |
+0 dBV |
| Mic |
-26 dBV |
|
| Analog Output Level |
| Selectable |
Line |
0 dB |
| Aux |
20 dB |
| Mic |
-46 dB |
|
| Built-in Digital Signal Processing |
| Per Channel |
Equalizer (4-band Parametric), Mute, Invert Polarity, Gain (140 dB range) |
| System |
Audio Summing |
|
