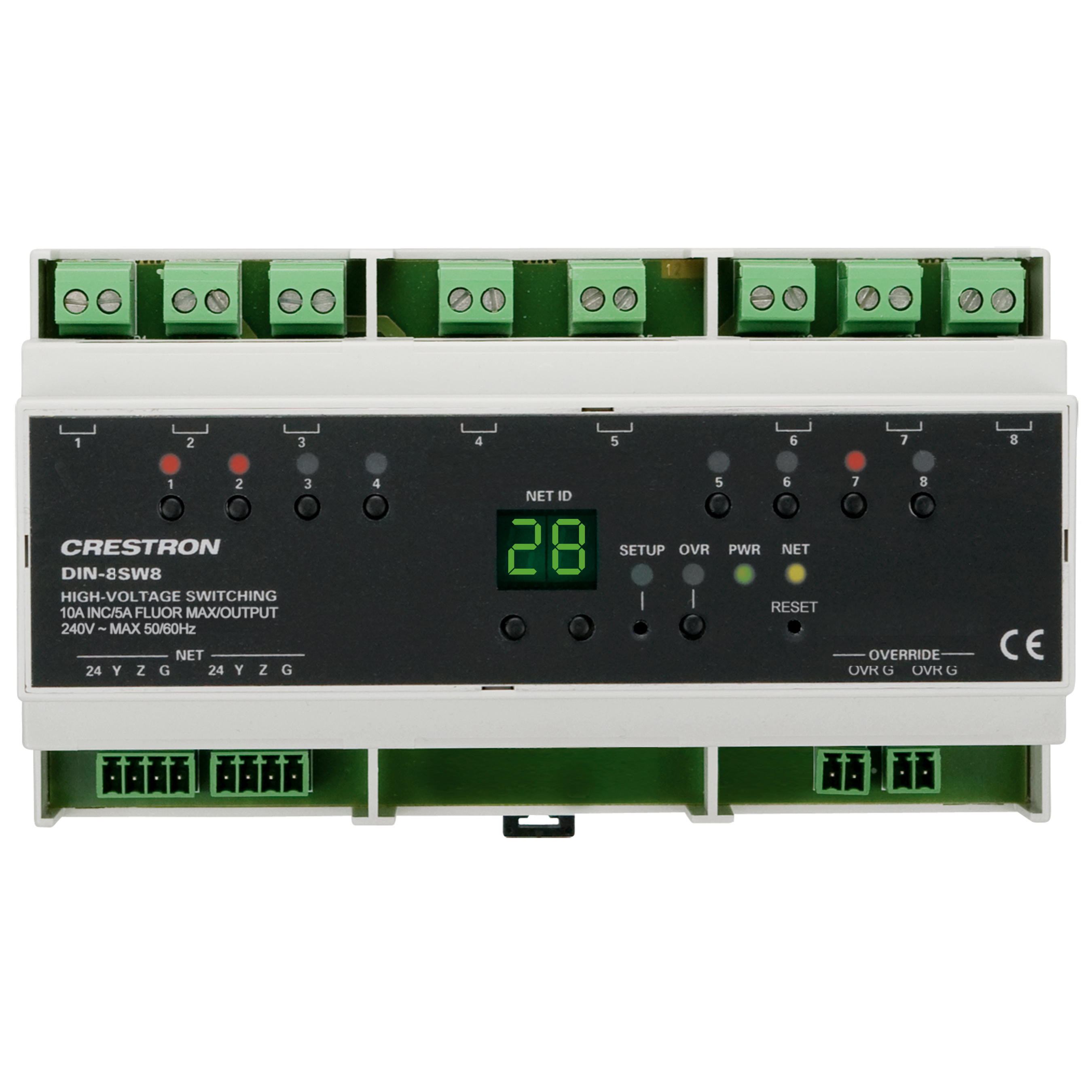

DIN-8SW8 DIN導軌高壓開關
8ch
DIN-8SW8是一個8通道照明控制模塊，旨在支持不可調光照明和風扇的切換。一個型號支持120和220-240伏應用。每個通道可處理高達10安培的白熾負載，高達5安培的熒光負載以及1/2 HP電機。
- 8路電源切換
- 支持120至240伏50/60赫茲
- 覆蓋輸入
- Cresnet通訊
- 通過前面板或軟件進行設置
- 可編程功能通過DIN-AP2
- 9M寬DIN導軌安裝
產品詳細資訊
Product Description
DIN-8SW8是一個8通道照明控制模塊，旨在支持不可調光照明和風扇的切換。一個型號支持120和220-240伏應用。每個通道可處理高達10安培的白熾負載，高達5安培的熒光負載以及1/2 HP電機。
覆蓋輸入
DIN導軌安裝
Cresnet®
1.功能特點
- 8路電源切換
- 支持120至240伏50/60赫茲
- 覆蓋輸入
- Cresnet通訊
- 通過前面板或軟件進行設置
- 可編程功能通過DIN-AP2
- 9M寬DIN導軌安裝
應用:
產品詳細規格
Additional Information
| 產品型號 |
DIN-8SW8 |
|---|---|
| Load Ratings | |
| Switch Channels | 8 |
| Maximum Per Channel | 10 Amps incandescent, 5 Amps fluorescent, 0.5 HP @ 120 to 240 Volts AC, 50/60 Hz; 5 Amps @ 30 Volts DC; 16 Amps Resistive |
| Module Total | 80 Amps incandescent, 40 Amps fluorescent @ 120 to 240 Volts AC, 50/60 Hz |
| Load Types* | Incandescent, Magnetic Low-voltage, Electronic Low-Voltage, Neon/Cold Cathode, Fluorescent, Motors |
| Connections | |

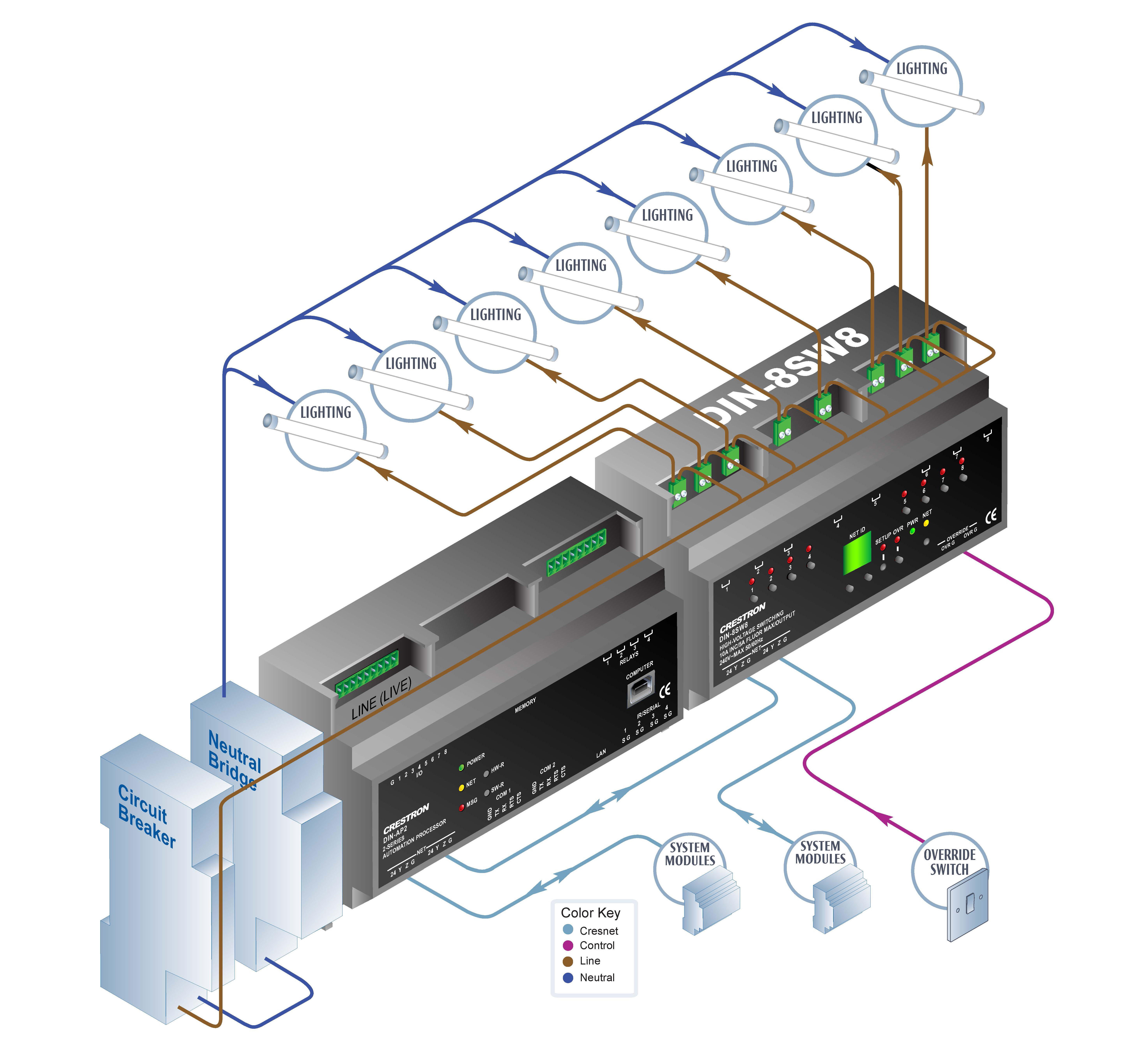

| 1 – 8 | (8) sets of (2) captive screw terminals; Isolated Class 1 SPST relay switch circuits 1 – 8; Relay Rating: 10 Amps incandescent, 5 Amps fluorescent, 16 Amps resistive, 0.5 HP @ 240 Volts AC (per channel); Maximum Wire Size: 12 AWG (2.5 mm²) |
| NET | (2) 4-pin 3.5mm detachable terminal blocks, paralleled; Cresnet slave port |
| OVERRIDE | (2) 2-pin 3.5mm detachable terminal blocks, paralleled; Sensing input for external low-voltage contact closure; Activates override mode when a closure is present; Minimum Closure Rating: 10mA (per module) at 24 Volts |
| Controls & Indicators | |
| 1 – 8 | (8) Red LEDs and (8) miniature pushbuttons for status indication and local control of each channel |
| NET ID | (2) 7-Segment green LED digits and (2) miniature pushbuttons for setting Cresnet ID |
| SETUP | (1) Red LED and (1) recessed miniature pushbutton for enabling setup mode and touch-settable ID |
| OVR | (1) Red LED and (1) miniature pushbutton for enabling override mode and saving override presets |
| PWR | (1) Green LED, illuminates when DC power is applied to the NET port |
| NET | (1) Yellow LED, indicates communication with the control processor |
| RESET | (1) Recessed miniature pushbutton, resets internal processor |
| Enclosure | |
| Light gray polycarbonate housing with polycarbonate label overlay, UL94 V-0 rated, 35mm DIN EN 60715 rail mount, DIN 43880 form factor for enclosures with 45mm front panel cutout, occupies 9 DIN module spaces (162mm) | |
| Power Requirements | |
| Cresnet Power Usage | 5.4 Watts (0.23 Amps @ 24 Volts DC) |
| Environmental | |
| Temperature | 32° to 104°F (0° to 40°C) |
| Humidity | 10% to 90% RH (non-condensing) |
| Heat Dissipation | 18 BTU/hr |
| Dimensions | |
| Height | 3.71 in (9.42 cm) |
| Width | 6.26 in (15.90 cm) |
| Depth | 2.35 in (5.95 cm) |
| Weight | |
| 13.1 oz (369 g) | |
| Notes: | |
|
|
